Quotes - Sales - EngineeringSAE-1206-C4-TP
American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | SAE Series | Two Pass |
-Download
Datasheet

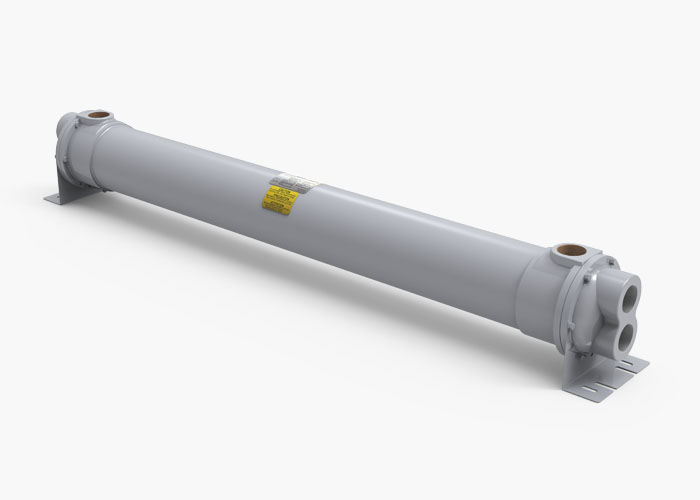

Note: Unit pictured is representative of standard unit and may not exactly depict p/n SAE-1206-C4-TP as shown on this page.
Product Overview
Part Number:
SAE-1206-C4-TP
Series:
SAE
Brand:
AIHTI / American Industrial
Configuration
Shell Diameter:
6.13"
Core Lenght:
54"
Tubing:
0.25"
Tube Side Pass:
Two Pass"
Construction
- Tubing: Copper
- Bonnets: Cast Iron
- Connections: SAE O-ring
Rating
- Max Pressure: 300 PSI
- Max Temperature: 300F
