Quotes - Sales - EngineeringUCF-1024-6-FP
American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | UCF Series | Four Pass |
-Download
Datasheet

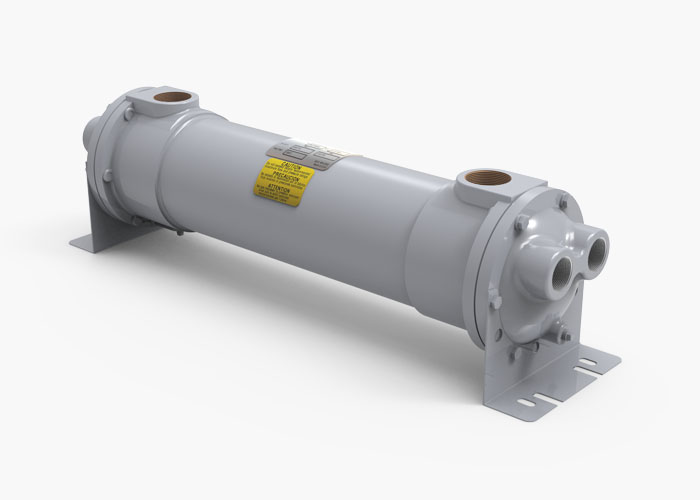

Note: Unit pictured is representative of standard unit and may not exactly depict p/n UCF-1024-6-FP as shown on this page.
Product Overview
Part Number:
UCF-1024-6-FP
Series:
UCF
Brand:
AIHTI / American Industrial
Configuration
Bundle Type:
Fixed Bundle
Shell Diameter:
5.25"
Core Lenght:
24"
Tubing Diameter:
0.375"
Tubeside Passes:
Four
Construction
- Tubing: Copper
- End Bonnets: Cast Iron
- Tubesheet: Steel
- Zincs: Optional
- Gaskets: High Temp Composite
Rating
- Service: Steam to Water
- Rated Pressure: 100 PSI
- Rated Temperature: 400F
Material and Baffle Spacing Options
Standard Materials:
UCF-1024-1.5-6-FP
UCF-1024-2-6-FP
UCF-1024-3-6-FP
UCF-1024-4-6-FP
CuNi & Bronze:
UCF-1024-1.5-6-FP-CNT-B-Z-BT
UCF-1024-2-6-FP-CNT-B-Z-BT
UCF-1024-3-6-FP-CNT-B-Z-BT
UCF-1024-4-6-FP-CNT-B-Z-BT
Stainless Steel:
UCF-1024-1.5-6-FP-STS-SB-ST
UCF-1024-2-6-FP-STS-SB-ST
UCF-1024-3-6-FP-STS-SB-ST
UCF-1024-4-6-FP-STS-SB-ST
