Quotes - Sales - EngineeringUCF-1036-10-SP
American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | UCF Series | One Pass |
-Download
Datasheet

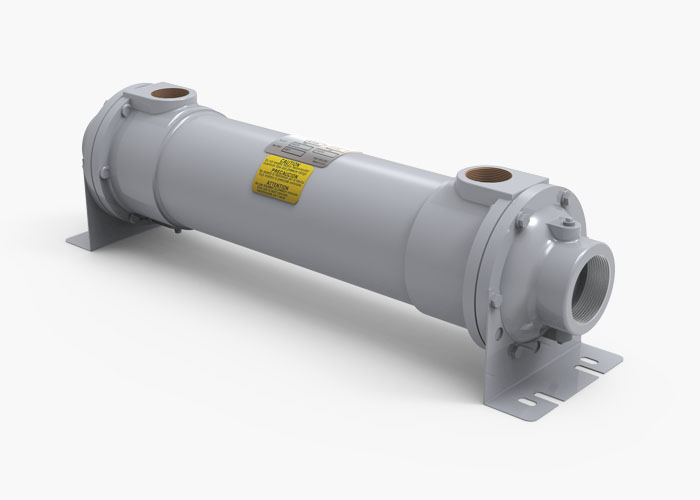

Note: Unit pictured is representative of standard unit and may not exactly depict p/n UCF-1036-10-SP as shown on this page.
Product Overview
Part Number:
UCF-1036-10-SP
Series:
UCF
Brand:
AIHTI / American Industrial
Configuration
Bundle Type:
Fixed Bundle
Shell Diameter:
5.25"
Core Lenght:
36"
Tubing Diameter:
0.625"
Tubeside Passes:
One
Construction
- Tubing: Copper
- End Bonnets: Cast Iron
- Tubesheet: Steel
- Zincs: Optional
- Gaskets: High Temp Composite
Rating
- Service: Steam to Water
- Rated Pressure: 100 PSI
- Rated Temperature: 400F
Material and Baffle Spacing Options
Standard Materials:
UCF-1036-1.5-10-SP
UCF-1036-2-10-SP
UCF-1036-3-10-SP
UCF-1036-4-10-SP
CuNi & Bronze:
UCF-1036-1.5-10-SP-CNT-B-Z-BT
UCF-1036-2-10-SP-CNT-B-Z-BT
UCF-1036-3-10-SP-CNT-B-Z-BT
UCF-1036-4-10-SP-CNT-B-Z-BT
Stainless Steel:
UCF-1036-1.5-10-SP-STS-SB-ST
UCF-1036-2-10-SP-STS-SB-ST
UCF-1036-3-10-SP-STS-SB-ST
UCF-1036-4-10-SP-STS-SB-ST
