Quotes - Sales - EngineeringUCN-1724-6-SP
American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | UCN Series | One Pass |
-Download
Datasheet

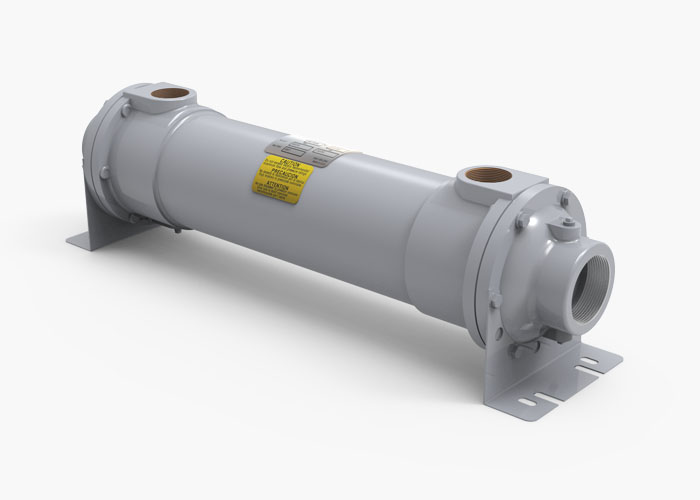

Note: Unit pictured is representative of standard unit and may not exactly depict p/n UCN-1724-6-SP as shown on this page.
Product Overview
Part Number:
UCN-1724-6-SP
Series:
UCN
Brand:
AIHTI / American Industrial
Configuration
Bundle Type:
Fixed Bundle
Shell Diameter:
8.0"
Core Lenght:
24"
Tubing Diameter:
0.375"
Tubeside Passes:
One
Construction
- Tubing: Copper
- End Bonnets: Cast Iron
- Tubesheet: Steel
- Zincs: Optional
- Gaskets: High Temp Composite
Rating
- Rated Pressure: 100 PSI
- Rated Temperature: 400F
Material and Baffle Spacing Options
Standard Materials:
UCN-1724-1.5-6-SP
UCN-1724-2-6-SP
UCN-1724-3-6-SP
UCN-1724-4-6-SP
CuNi & Bronze:
UCN-1724-1.5-6-SP-CNT-B-Z-BT
UCN-1724-2-6-SP-CNT-B-Z-BT
UCN-1724-3-6-SP-CNT-B-Z-BT
UCN-1724-4-6-SP-CNT-B-Z-BT
Stainless Steel:
UCN-1724-1.5-6-SP-STS-SB-ST
UCN-1724-2-6-SP-STS-SB-ST
UCN-1724-3-6-SP-STS-SB-ST
UCN-1724-4-6-SP-STS-SB-ST
