Quotes - Sales - EngineeringUCS-1760-FP
American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | UCS Series | Four Pass |
-Download
Datasheet

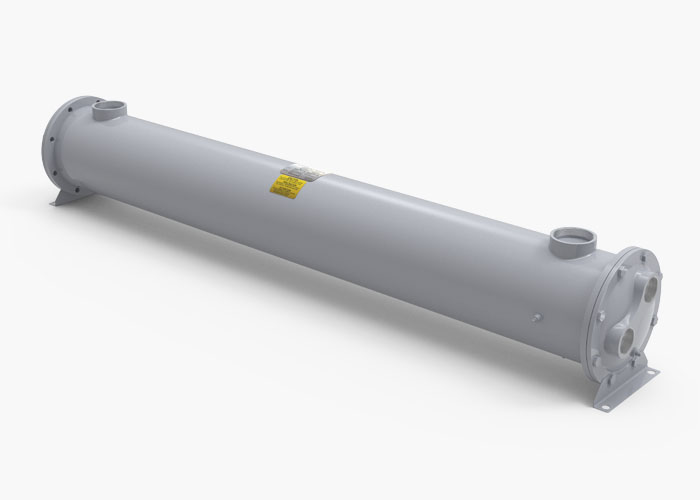

Note: Unit pictured is representative of standard unit and may not exactly depict p/n UCS-1760-FP as shown on this page.
Product Overview
Part Number:
UCS-1760-FP
Series:
UCS
Brand:
AIHTI / American Industrial
Configuration
Bundle Type:
Fixed Bundle
Shell Diameter:
60"
Core Lenght:
60"
Tubing Diameter:
1/4" - 3/8" - 5/8"
Tubeside Passes:
Four Pass
Construction
- Tubing: Copper / CuNi / SS
- End Bonnets: Cast Iron / Brass / SS
- Tubesheet: Steel / Brass / SS
- Zincs: Optional
- Gaskets: Compressed Fiber
Rating
- Rated Pressure: 250 PSI
- Rated Temperature: 400F
Material Options
Standard Materials:
UCS-1760-4-FPUCS-1760-6-FP
CuNi & Bronze:
UCS-1760-4-FP-CNT-B-Z-BTUCS-1760-6-FP-CNT-B-Z-BT
Stainless Steel:
UCS-1760-4-FP-STS-SB-STUCS-1760-6-FP-STS-SB-ST
