American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | URCN Series | Two Pass |
-Download
Datasheet

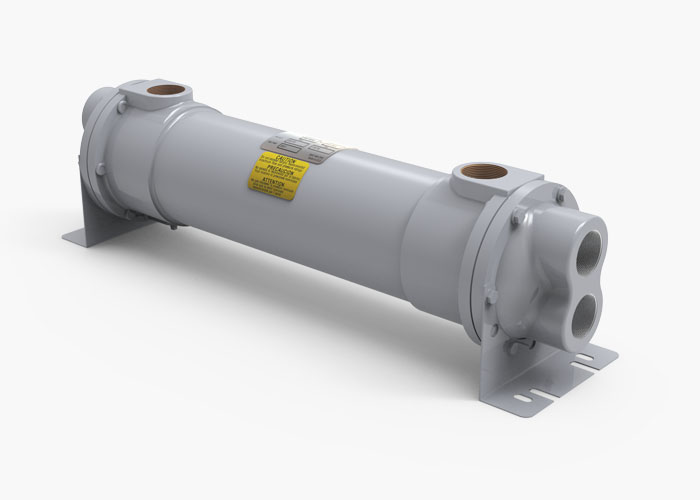

Note: Unit pictured is representative of standard unit and may not exactly depict p/n URCN-2072-10-TP as shown on this page.
Product Overview
Part Number:
URCN-2072-10-TP
Series:
URCN
Brand:
AIHTI / American Industrial
Configuration
Bundle Type:
Removeable Bundle
Shell Diameter:
10.75"
Core Lenght:
72"
Tubing Diameter:
0.625"
Tubeside Passes:
Two
Construction
- Tubing: Copper
- End Bonnets: Cast Iron
- Tubesheet: Steel
- Zincs: Optional
- Gaskets: High Temp Composite
Rating
- Rated Pressure: 100 PSI
- Rated Temperature: 400F
Material and Baffle Spacing Options
Standard Materials:
URCN-2072-1.5-10-TP
URCN-2072-2-10-TP
URCN-2072-3-10-TP
URCN-2072-4-10-TP
CuNi & Bronze:
URCN-2072-1.5-10-TP-CNT-B-Z-BT
URCN-2072-2-10-TP-CNT-B-Z-BT
URCN-2072-3-10-TP-CNT-B-Z-BT
URCN-2072-4-10-TP-CNT-B-Z-BT
Stainless Steel:
URCN-2072-1.5-10-TP-STS-SB-ST
URCN-2072-2-10-TP-STS-SB-ST
URCN-2072-3-10-TP-STS-SB-ST
URCN-2072-4-10-TP-STS-SB-ST
