1-805-484-2992
Quotes - Sales - EngineeringURCN-2084-10-FP
American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | URCN Series | Four Pass |
-Download
Datasheet

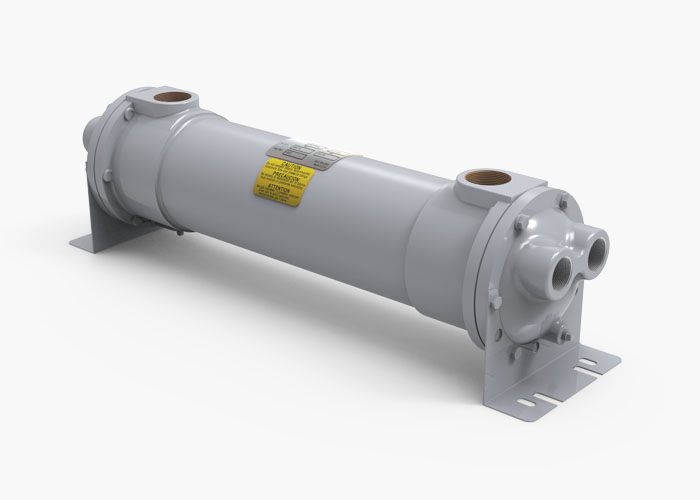

Note: Unit pictured is representative of standard unit and may not exactly depict p/n URCN-2084-10-FP as shown on this page.
Product Overview
Part Number:
URCN-2084-10-FP
Series:
URCN
Brand:
AIHTI / American Industrial
Configuration
Bundle Type:
Removeable Bundle
Shell Diameter:
10.75"
Core Lenght:
84"
Tubing Diameter:
0.625"
Tubeside Passes:
Four
Construction
- Tubing: Copper
- End Bonnets: Cast Iron
- Tubesheet: Steel
- Zincs: Optional
- Gaskets: High Temp Composite
Rating
- Rated Pressure: 100 PSI
- Rated Temperature: 400F
Material and Baffle Spacing Options
Standard Materials:
URCN-2084-1.5-10-FP
URCN-2084-2-10-FP
URCN-2084-3-10-FP
URCN-2084-4-10-FP
CuNi & Bronze:
URCN-2084-1.5-10-FP-CNT-B-Z-BT
URCN-2084-2-10-FP-CNT-B-Z-BT
URCN-2084-3-10-FP-CNT-B-Z-BT
URCN-2084-4-10-FP-CNT-B-Z-BT
Stainless Steel:
URCN-2084-1.5-10-FP-STS-SB-ST
URCN-2084-2-10-FP-STS-SB-ST
URCN-2084-3-10-FP-STS-SB-ST
URCN-2084-4-10-FP-STS-SB-ST
