Quotes - Sales - EngineeringCKS-1036-TP
American Industrial| Product | Style | Ratings | Configuration |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300PSI/300F | Two Pass |
-Download
Datasheet

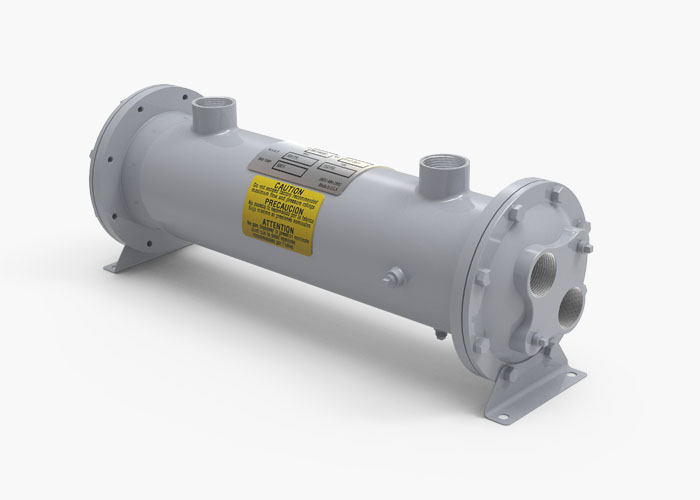

Note: Unit pictured is representative of standard unit and may not exactly depict p/n CKS-1036-TP as shown on this page.
Description
This American Industrial CKS-1036-TP shell and tube heat exchanger is an industrial fluid cooler from the CKS series line of coolers. Cost-effective industrial construction in a Two-pass configuration offers reliable heat transfer for a variety of industrial cooling applications, including: water and hydraulic oil. The fixed tubesheet design has a 5.25-inch diameter steel shell, 36-inch, copper tubes, and cast iron end bonnets. This unit has a maximum working shell pressure of 300 PSI, tube pressure of 150 PSI, and maximum operating temperature of 300F.
Product Overview
Part Number:
CKS-1036-TP
Series:
CKS-1036
Brand:
AIHTI / American Industrial
Configuration & Size
Size:
5.25" Diameter Shell x 36" Tube Length
Tube Side Passes:
Two Pass
Materials of Construction
- Tubes: Copper
- Shell: Steel
- End Bonnets: Cast Iron
- Namplate: Aluminum
Max Rating
- Shell Pressure: 300 PSI
- Tube Side Pressure: 150 PSI
- Temperature: 300F
